Proven Part 50" Deck Spindles & Kit for Toro TimeCutter SW5000 MX5025 / 139-3214 121-0751

Mower Deck Spindle with Pulley and Blade / Bolt / Belt Kit

Compatible with Toro TimeCutter Zero-Turn Mower:

74387 (ZS 5000) 50" (SN: 314000001 - 314999999) (2014)

74395 (ZS 5000 TF) 50" (SN: 313000001 - 314999999) (2013-2014)

74631 (SS 5000) 50" (SN: 314000001 - 314999999) (2014)

74632 (SS 5060) 50" (SN: 313000001 - 314999999) (2013-2014)

74635 (SS 5035) 50" (SN: 314000001 - 314999999) (2014)

74637 (SS 5000) 50" (SN: 314000001 - 314999999) (2014)

74638 (SS 5060) 50" (SN: 314000001 - 314999999) (2014)

74641 (MX 5060) 50" (SN: 314000001 - 314999999) (2014)

74643 (MX 5060) 50" (SN: 314000001 - 314999999) (2014)

74660 (ZS 5000) 50" (SN: 315000001 - 315999999) (2015)

74661 (ZS 5000) 50" (SN: 316000001 - 316999999) (2016)

74661 (ZS 5000) 50" (SN: 400000000 - 999999999)

74680 (SW 5000) 50" (SN: 315000001 - 316999999) (2015-2016)

74680 (SW 5000) 50" (SN: 400000000 - 999999999)

74688 (ZS 5000) 50" (SN: 400000000 - 999999999)

74727 (MX 5025) 50" (SN: 400000000 - 999999999)

74730 (SS 5000) 50" (SN: 315000001 - 316999999) (2015-2016)

74387 (ZS 5000) 50" (SN: 311000001 - 313999999) (2011-2013)

74630 (SS 5000) 50" (SN: 311000001 - 312999999) (2011-2012)

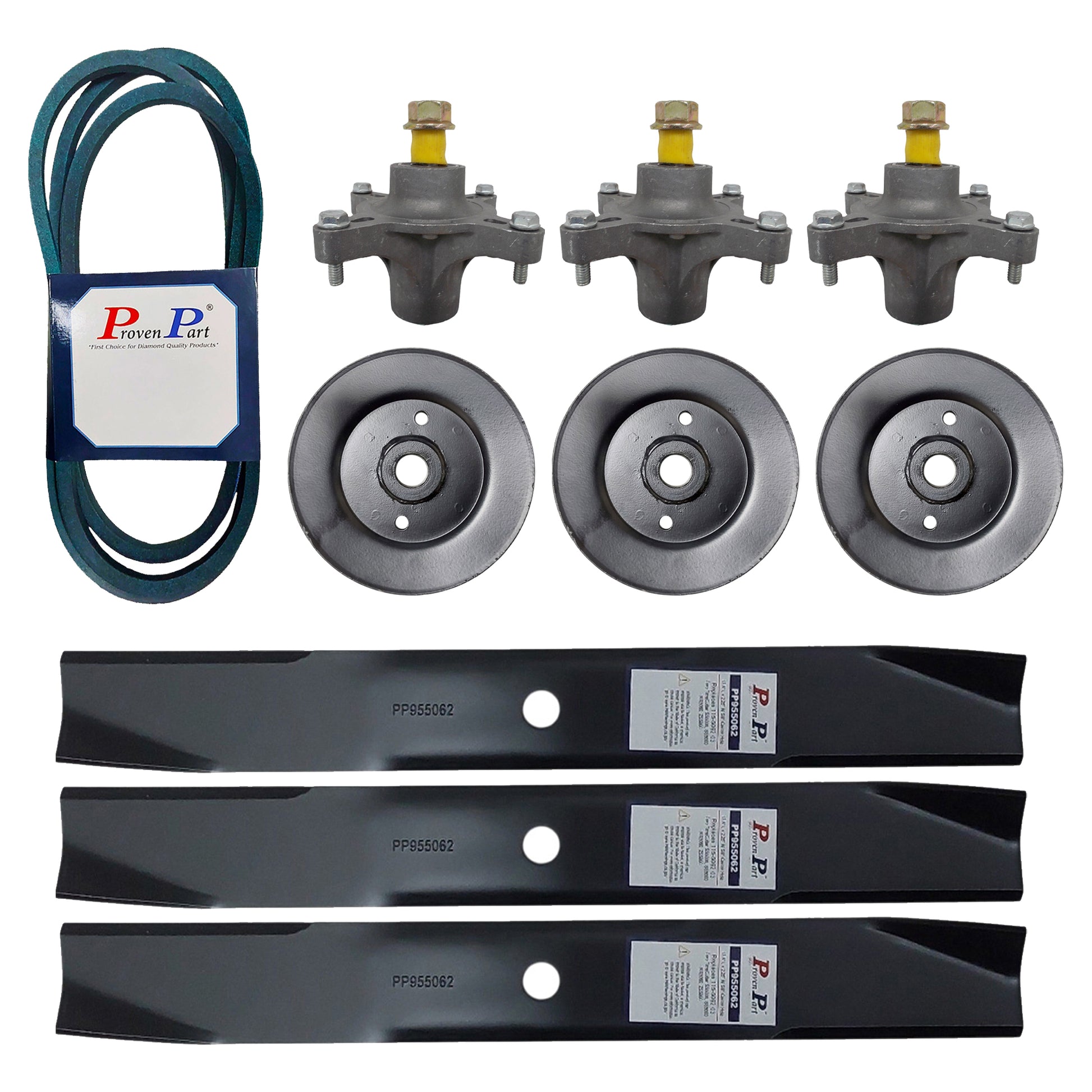

Order Includes :

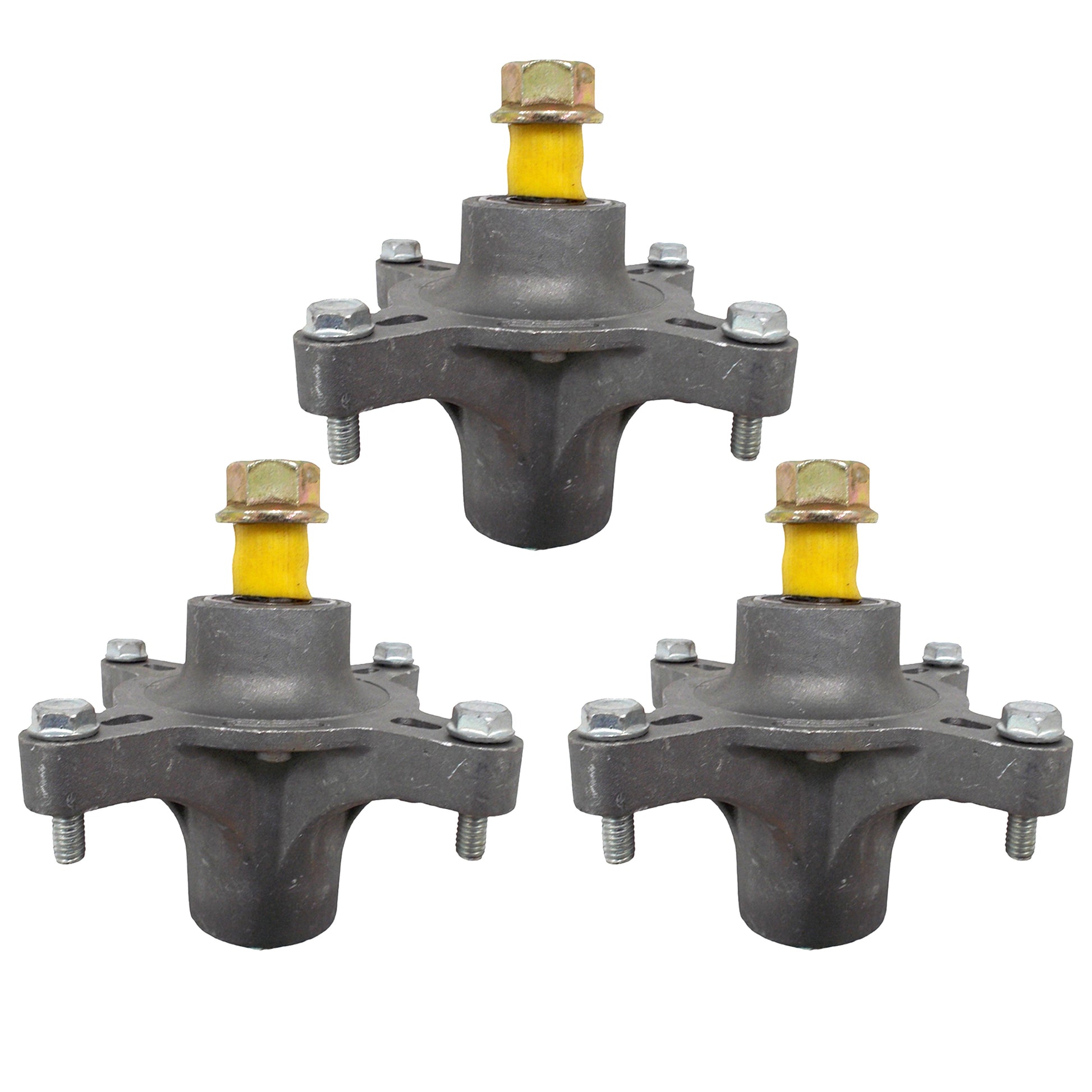

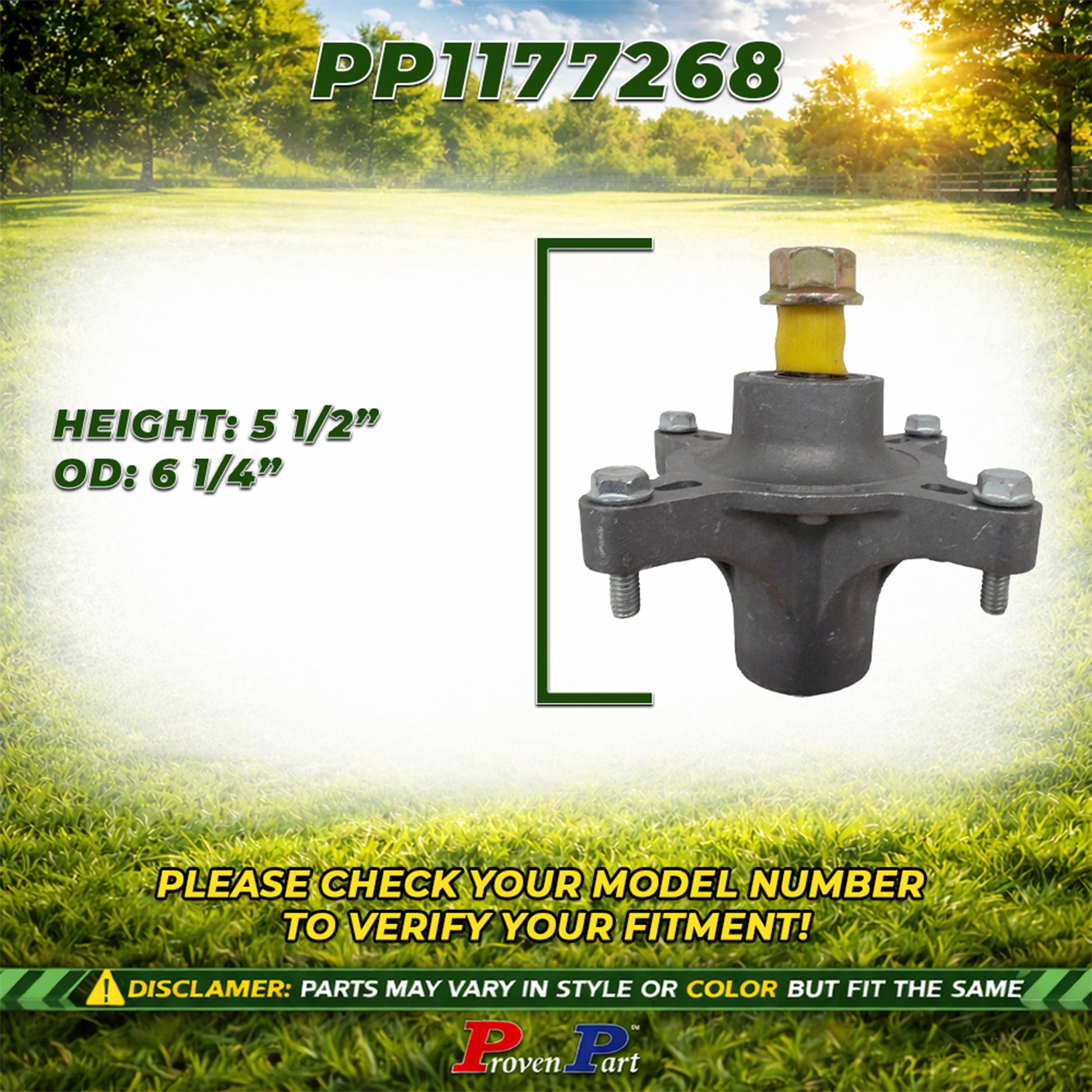

3 x Spindle : 139-3214, 121-0751, 117-7267

Height : 5.74 in - 146 mm

Width : 6.25 in - 159 mm

Mounting Hole Distance : 3.85 in - 98 mm

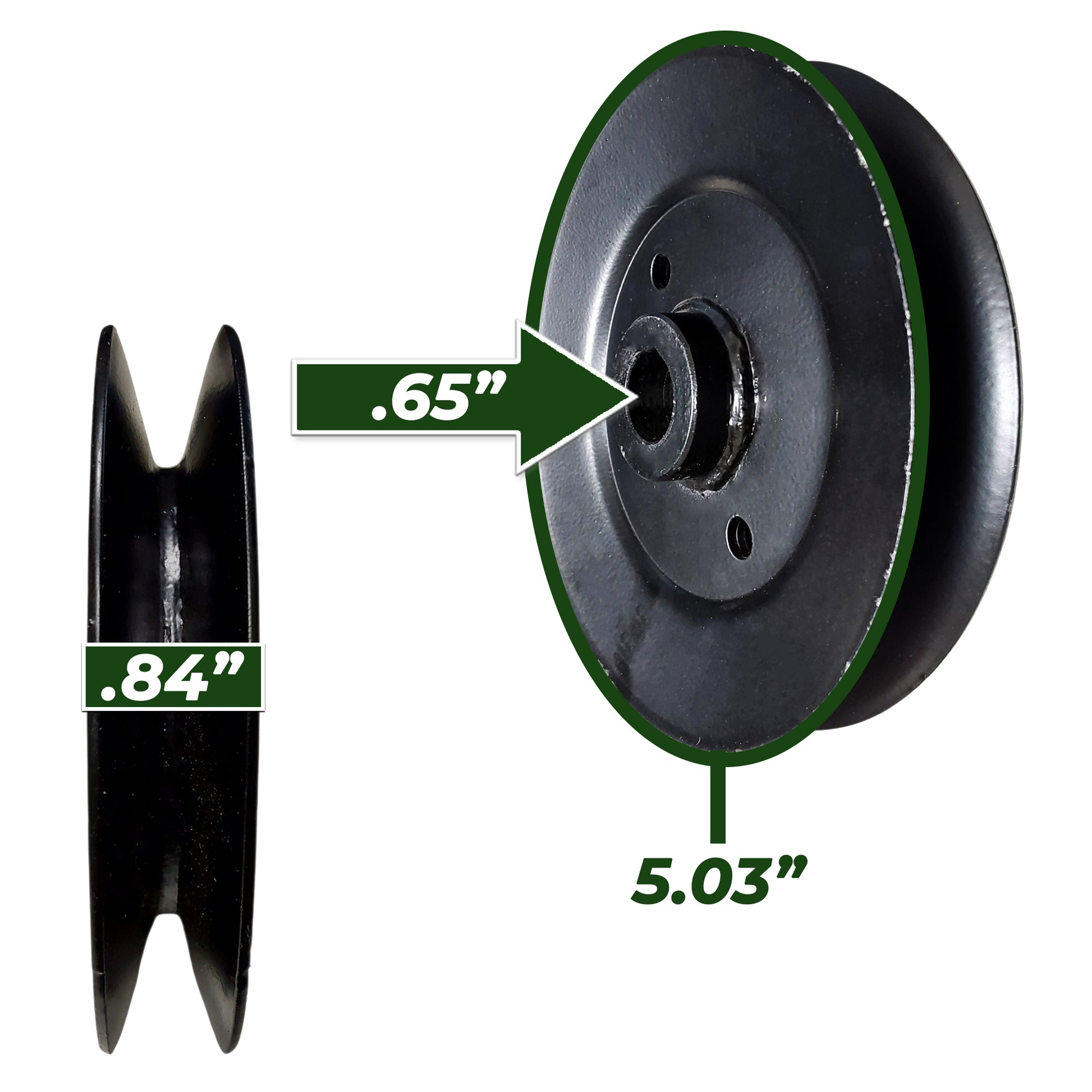

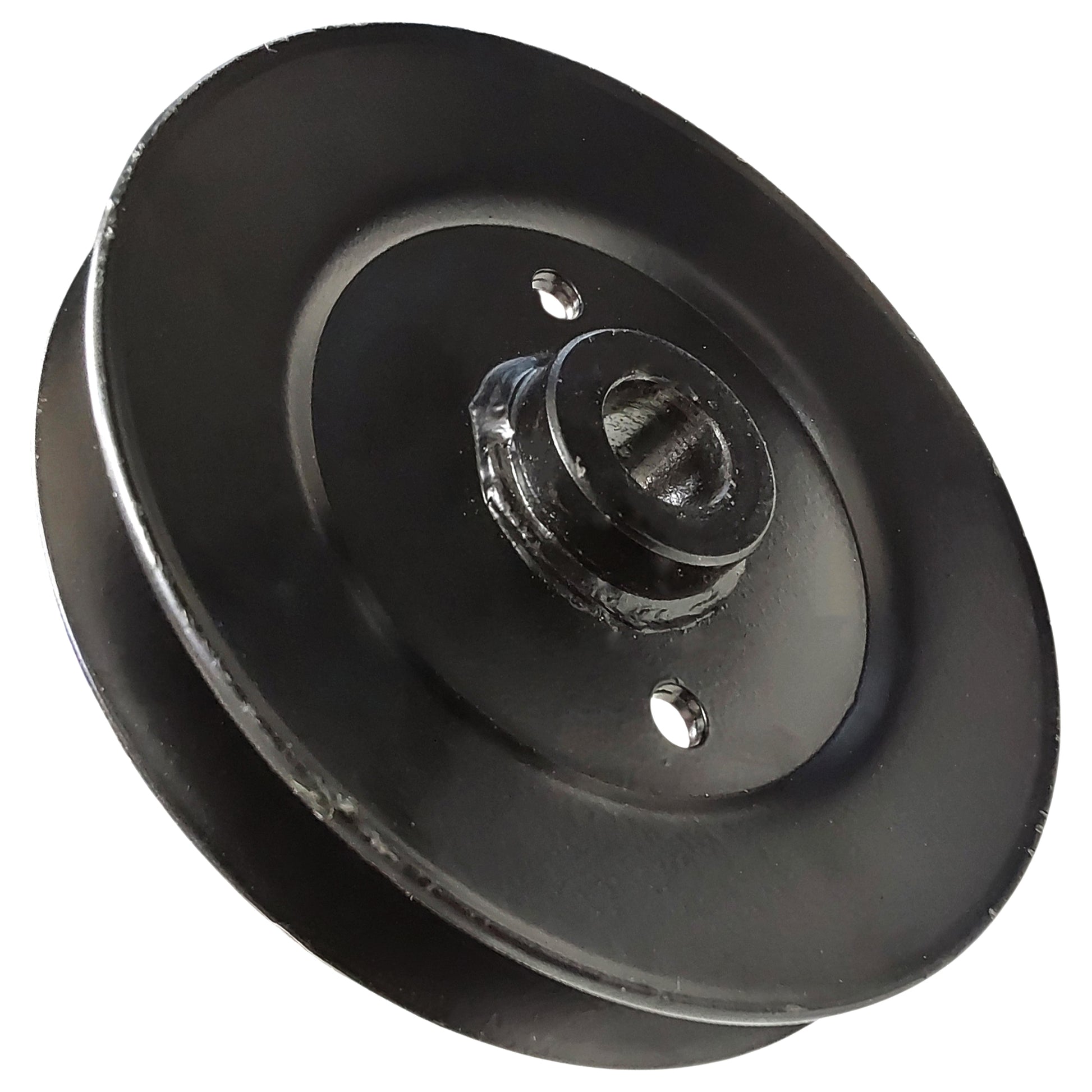

3 x Pulley : 125-5575, 110-6865

Inner Diameter : 0.67 in - 17 mm

Outer Diameter : 5.07 in - 129 mm

Width : 0.98 in - 25 mm

Inner Width : 0.55 in - 14 mm

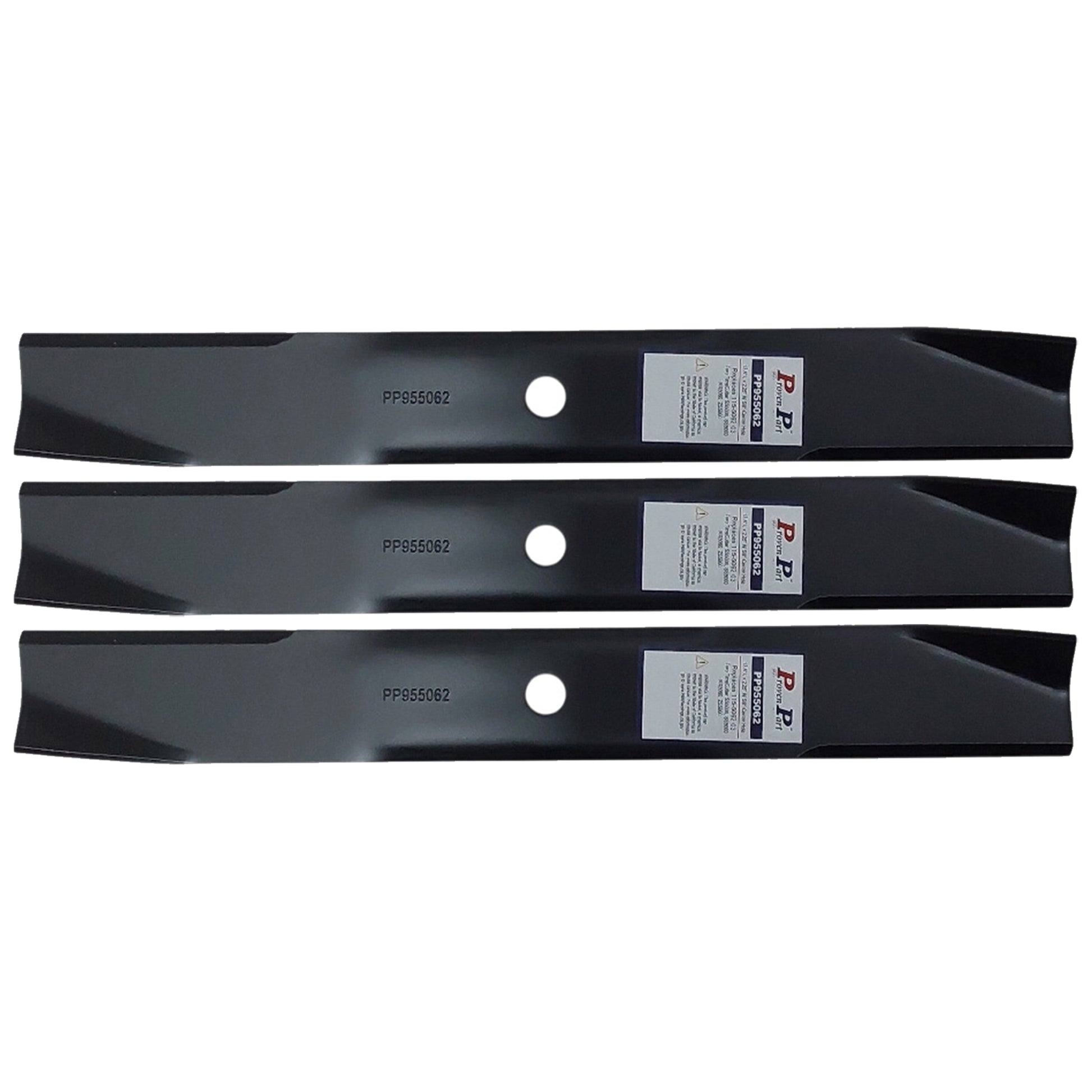

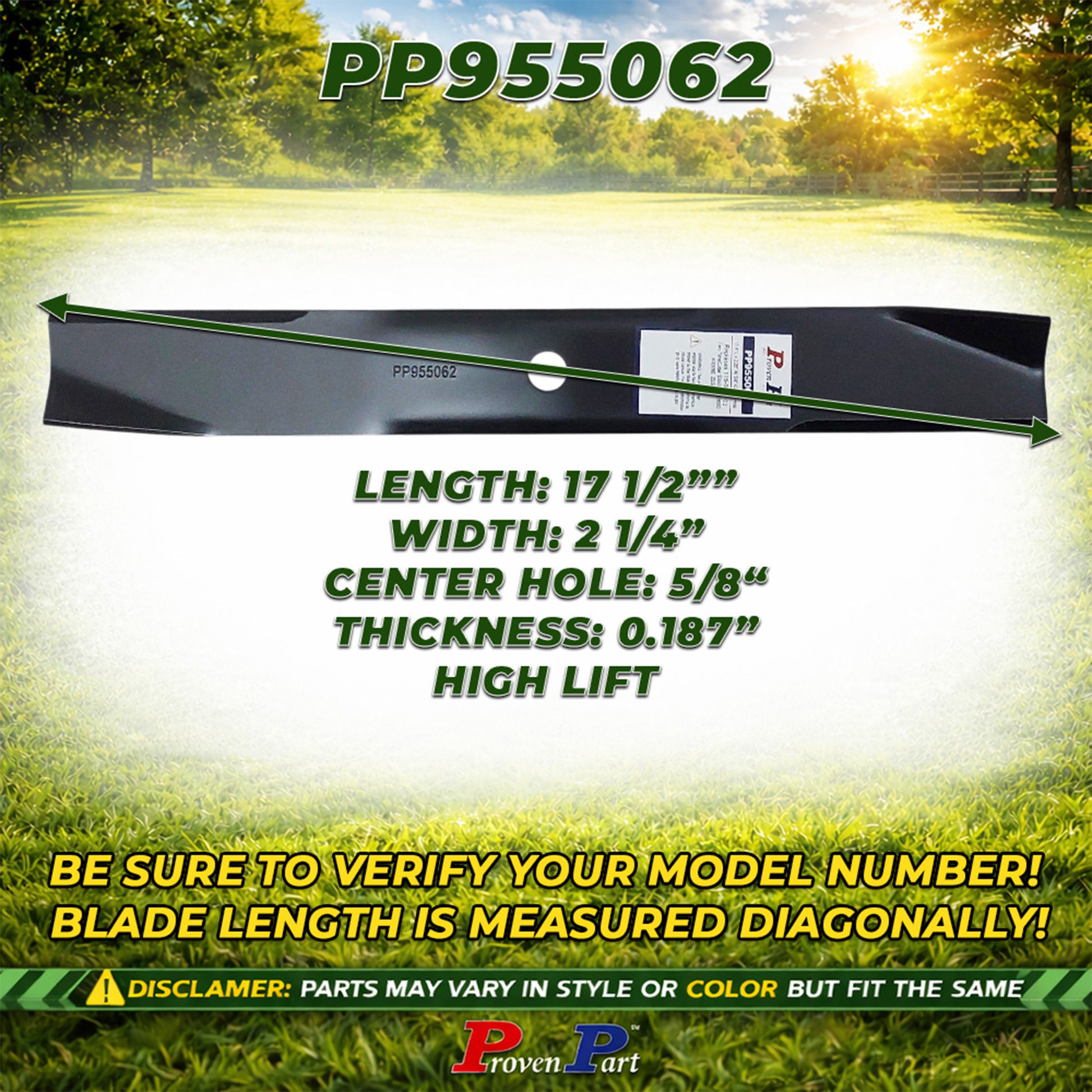

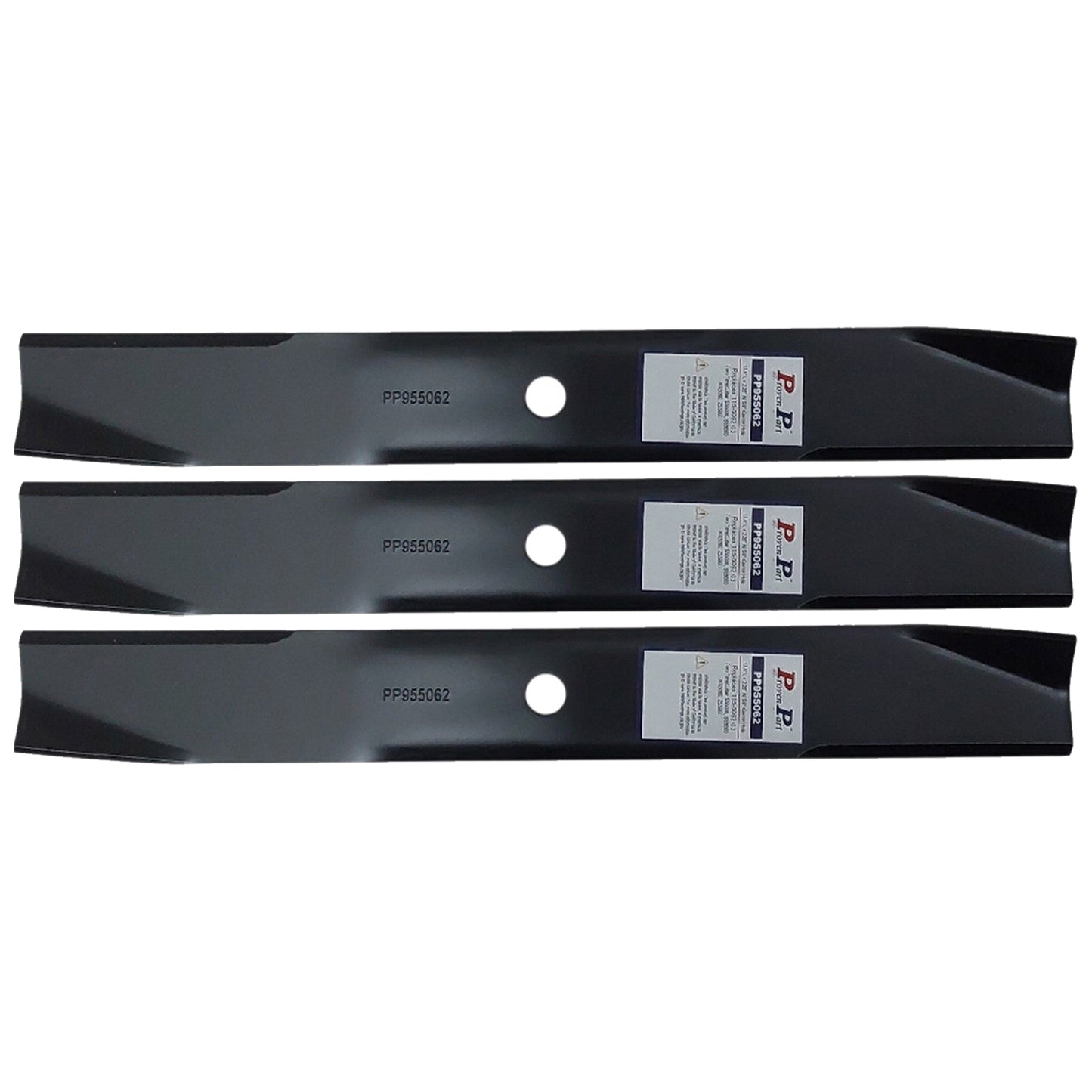

3 x Blades (17 1/2") : 115-5062-03

Length : 17 1/2 in - 439.7 mm

Center Hole Diameter : 5/8 in - 15.8 mm

Thickness : 5/8 in - 6.0 mm

Powder Coated

3 x Blade Bolts : 26-0671, 3290-465

Length : 1.75 in - 44.5 mm

Thread Size: 7/16-20

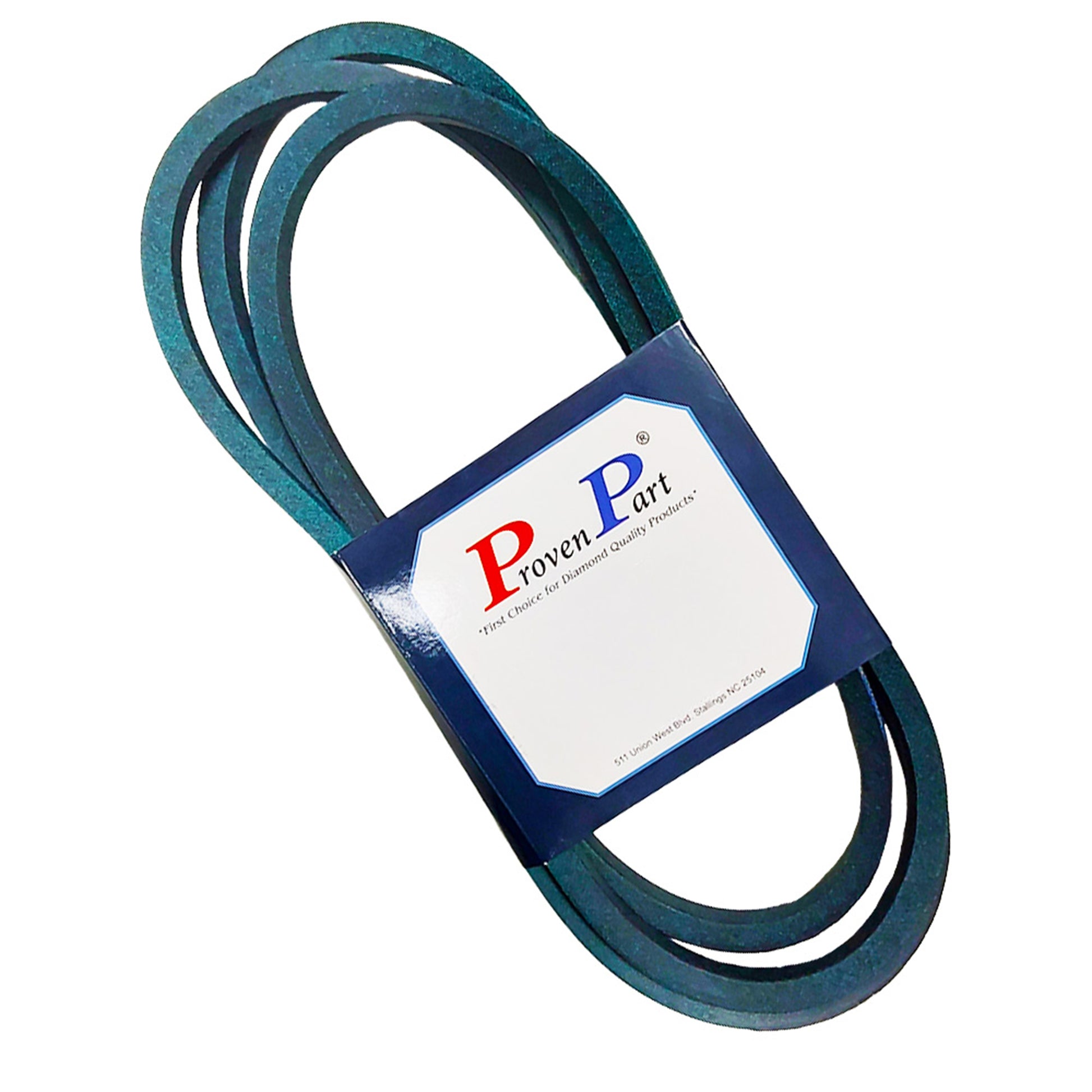

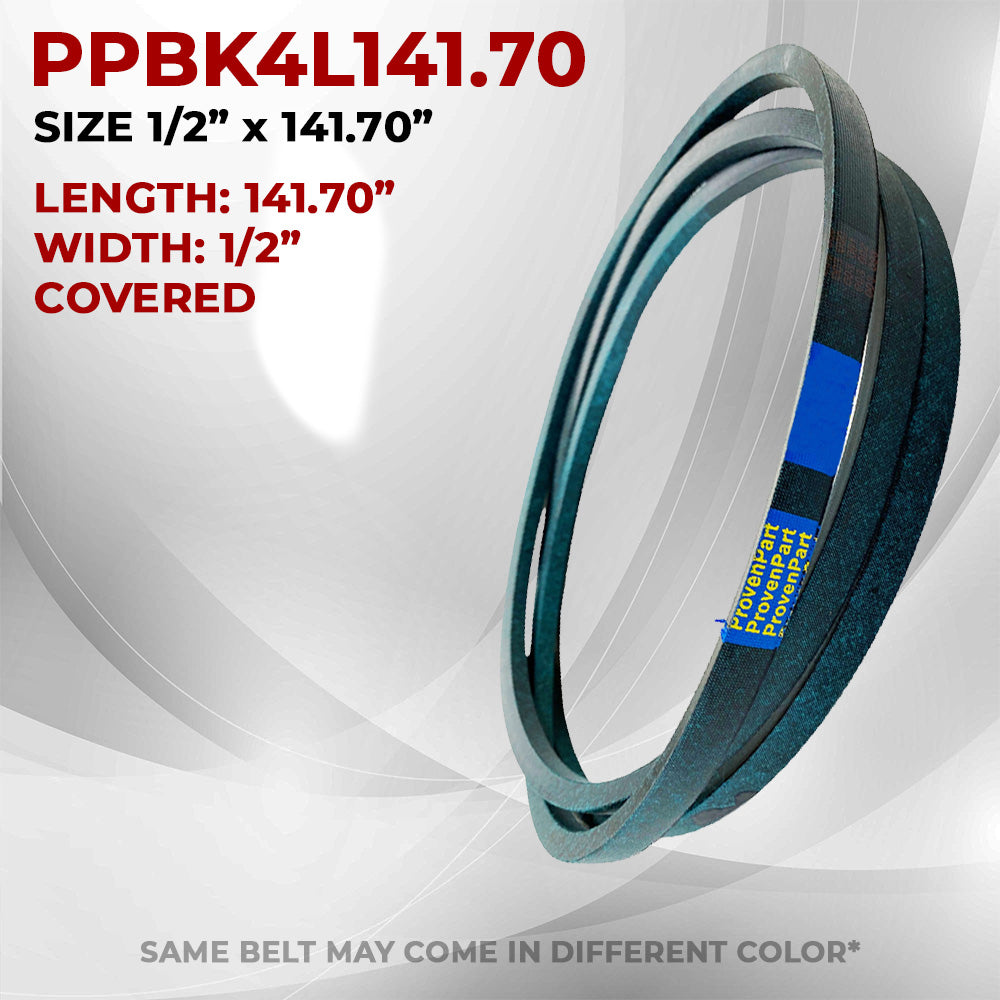

1 x Belt : 119-8820-SL, 119-8820

Overal Length : 141.7in

Width : 0.50 in - 12.7 mm
