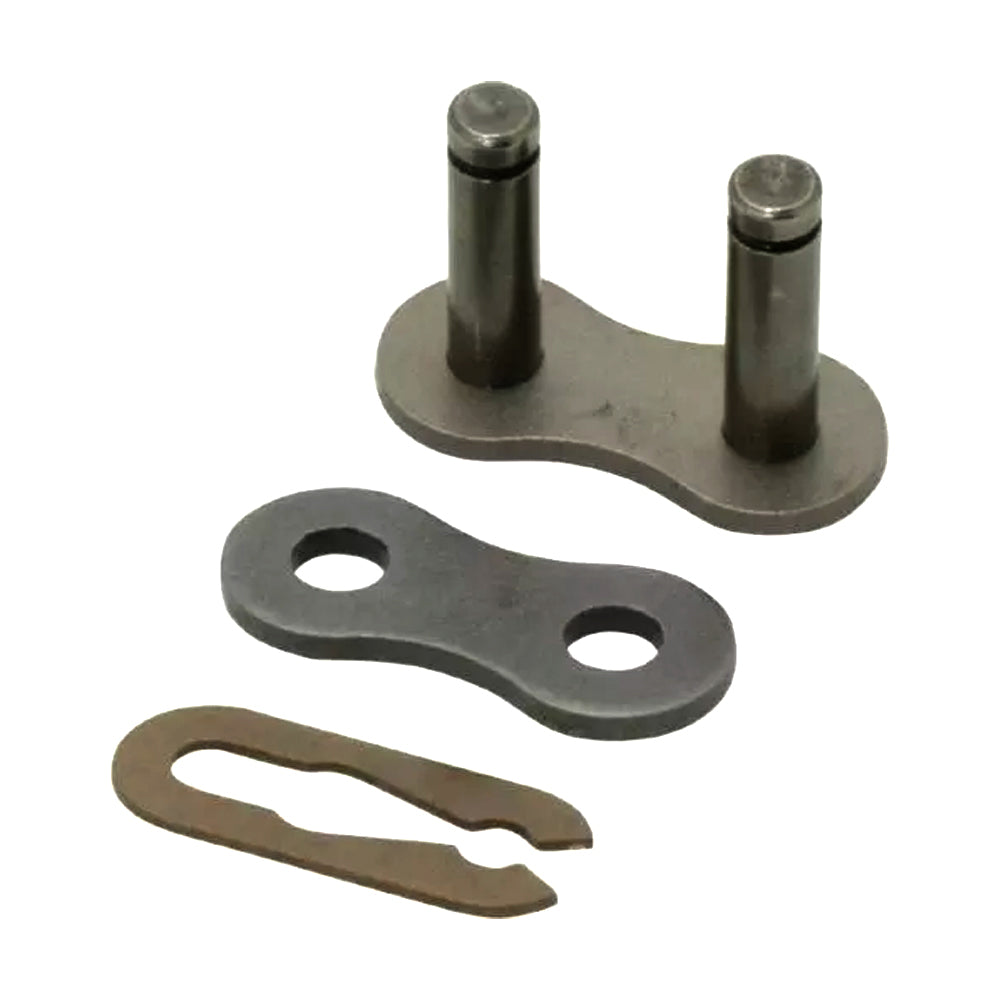

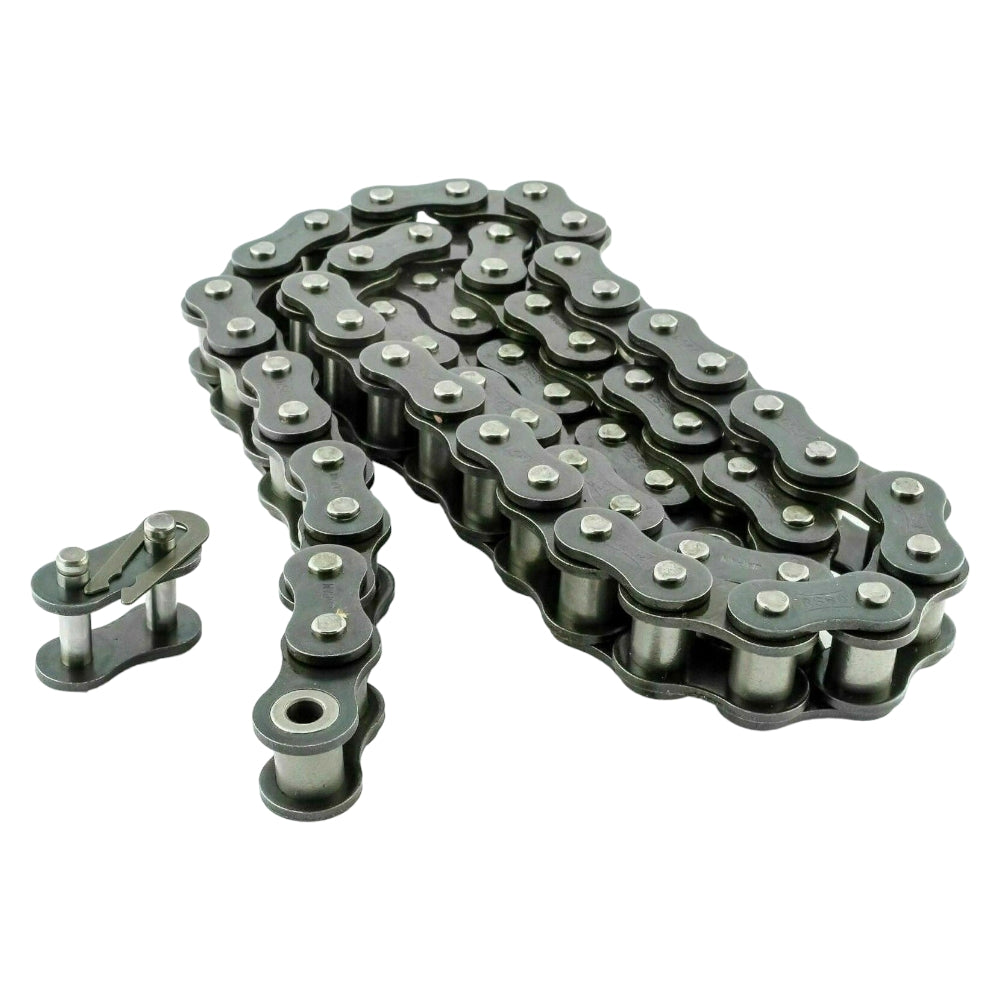

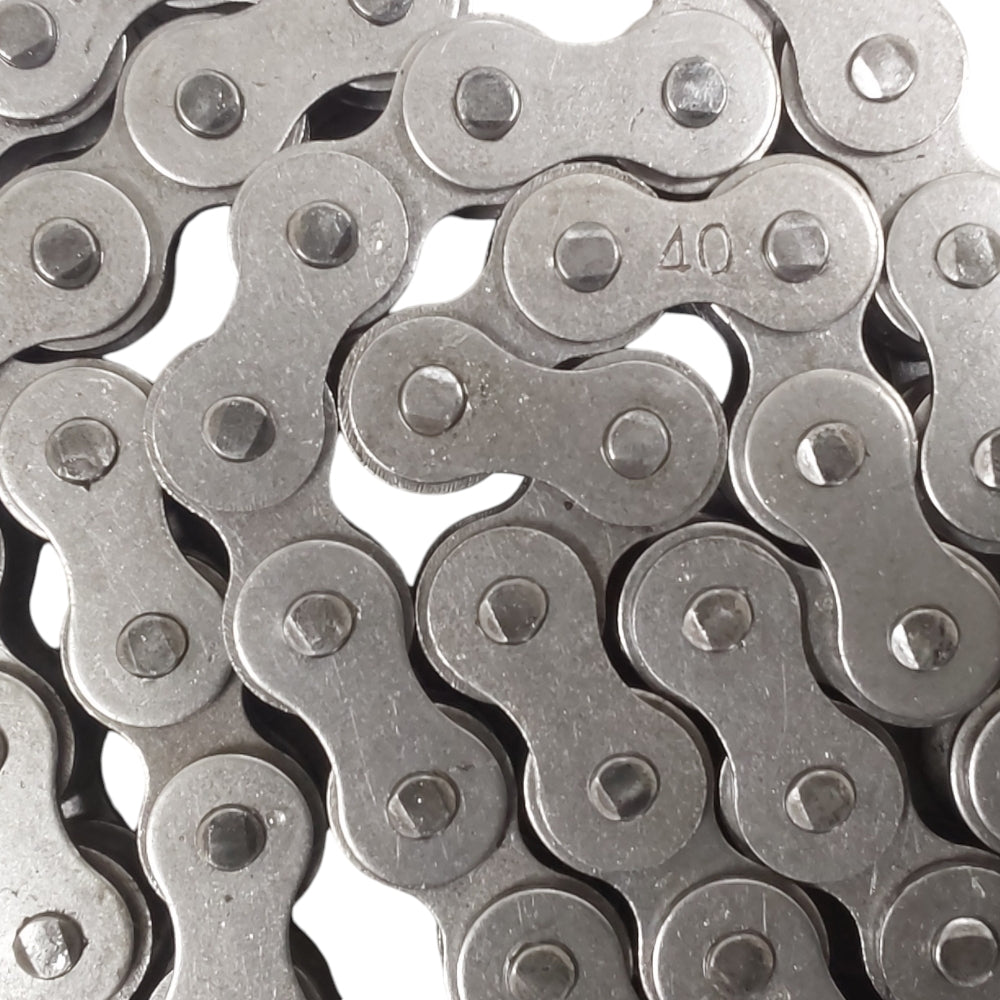

#40 Roller Chain X 10 Foot + 2 Connecting Links

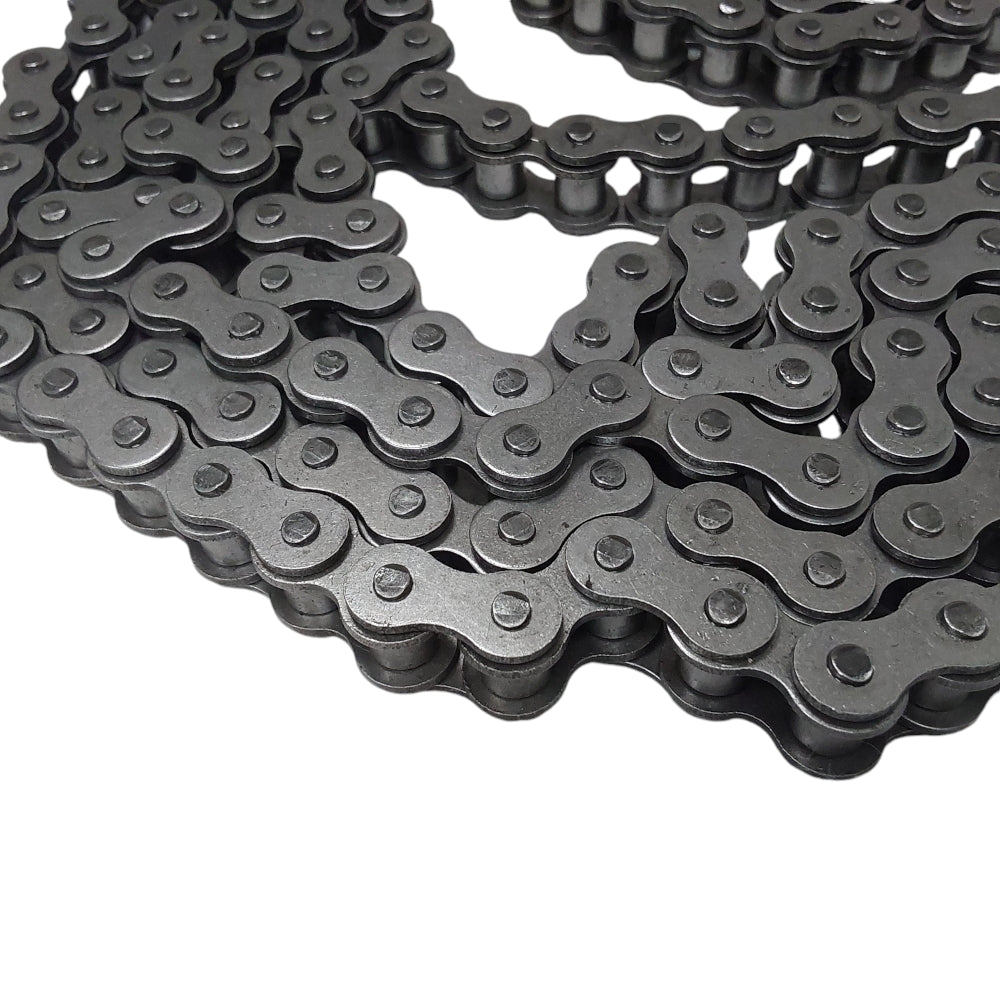

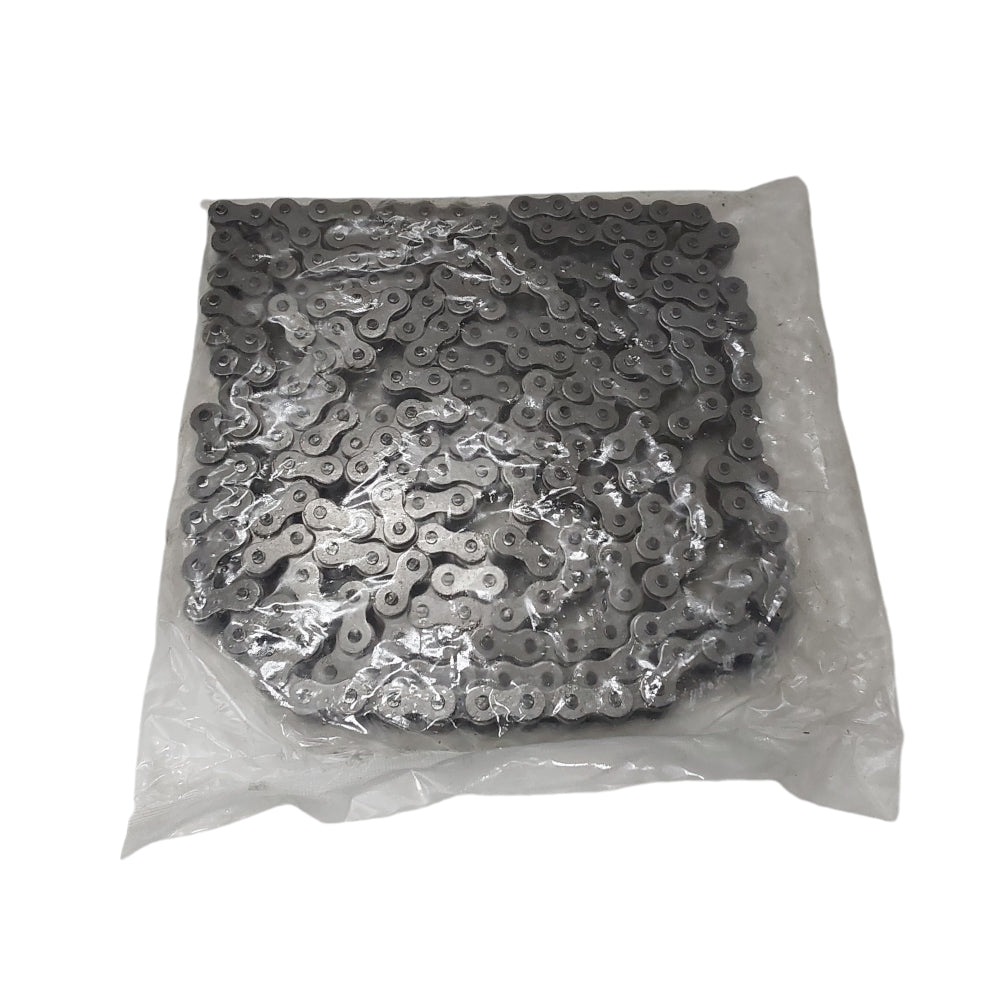

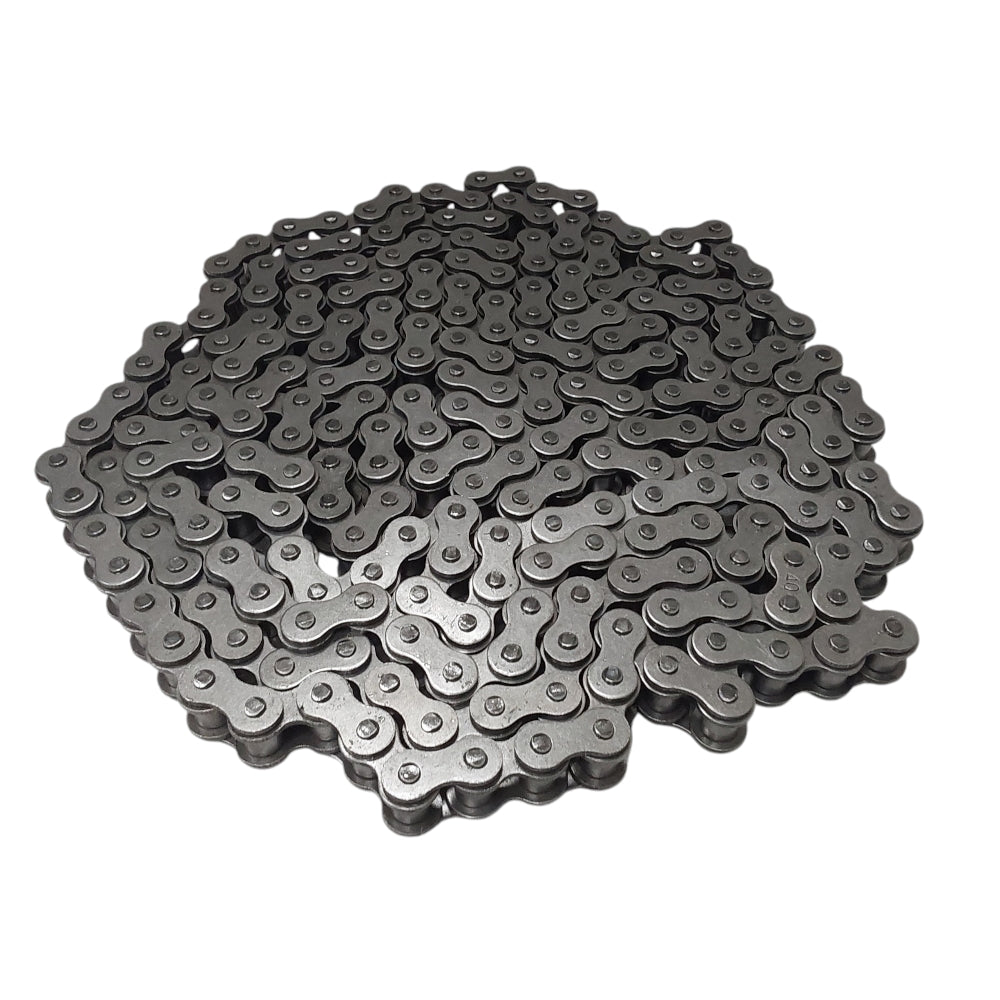

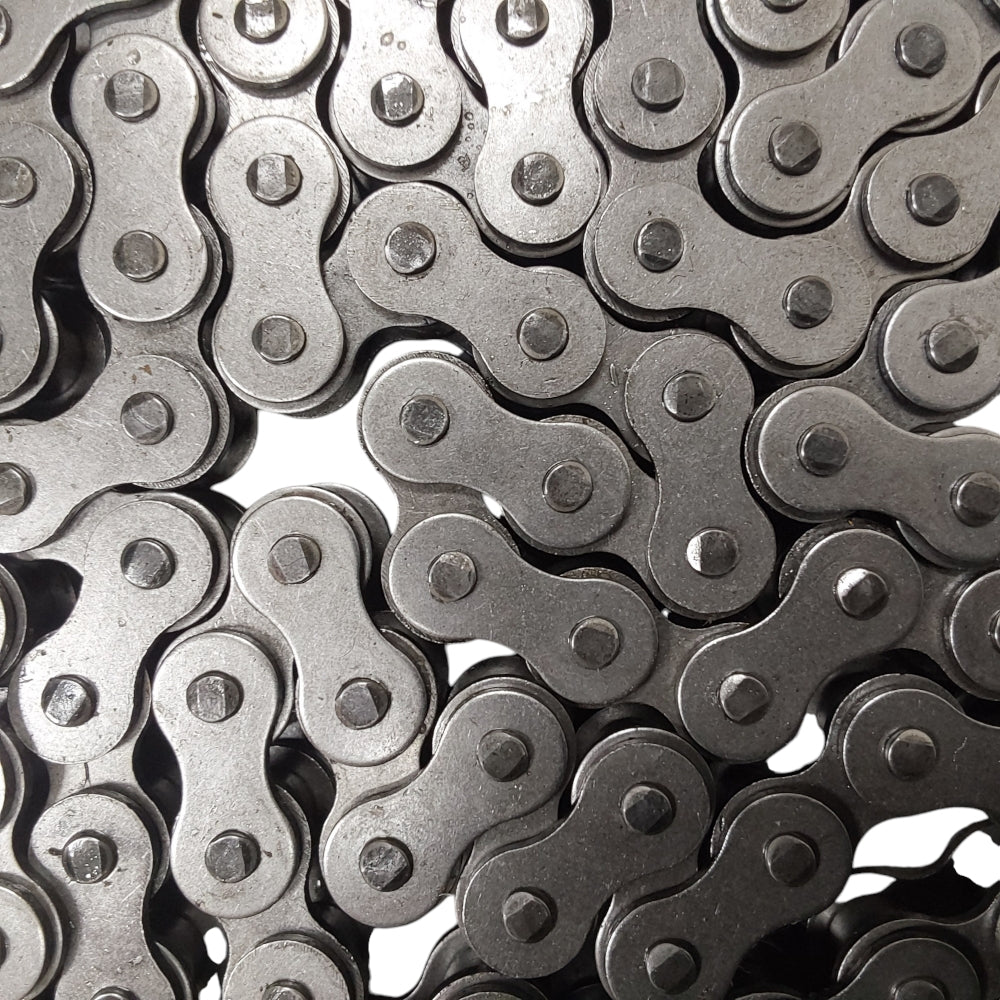

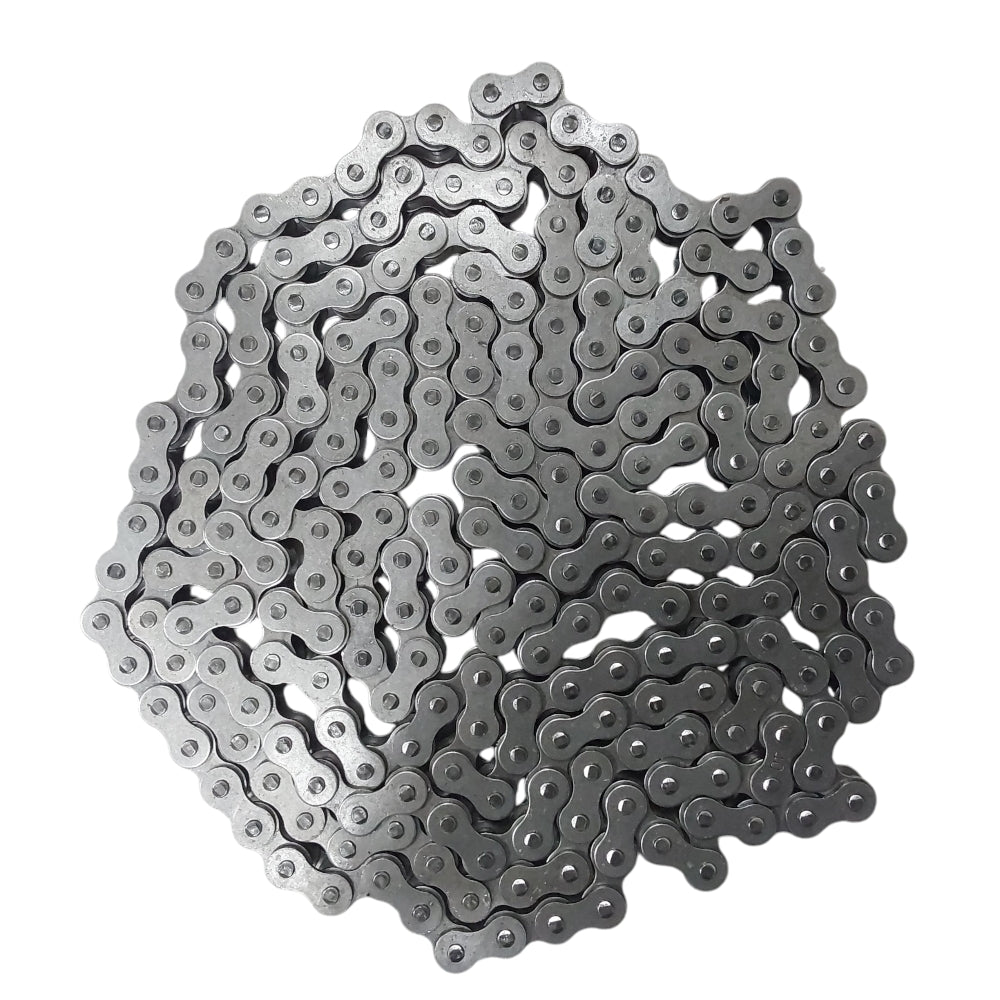

#40 Roller Chain X 10 Foot

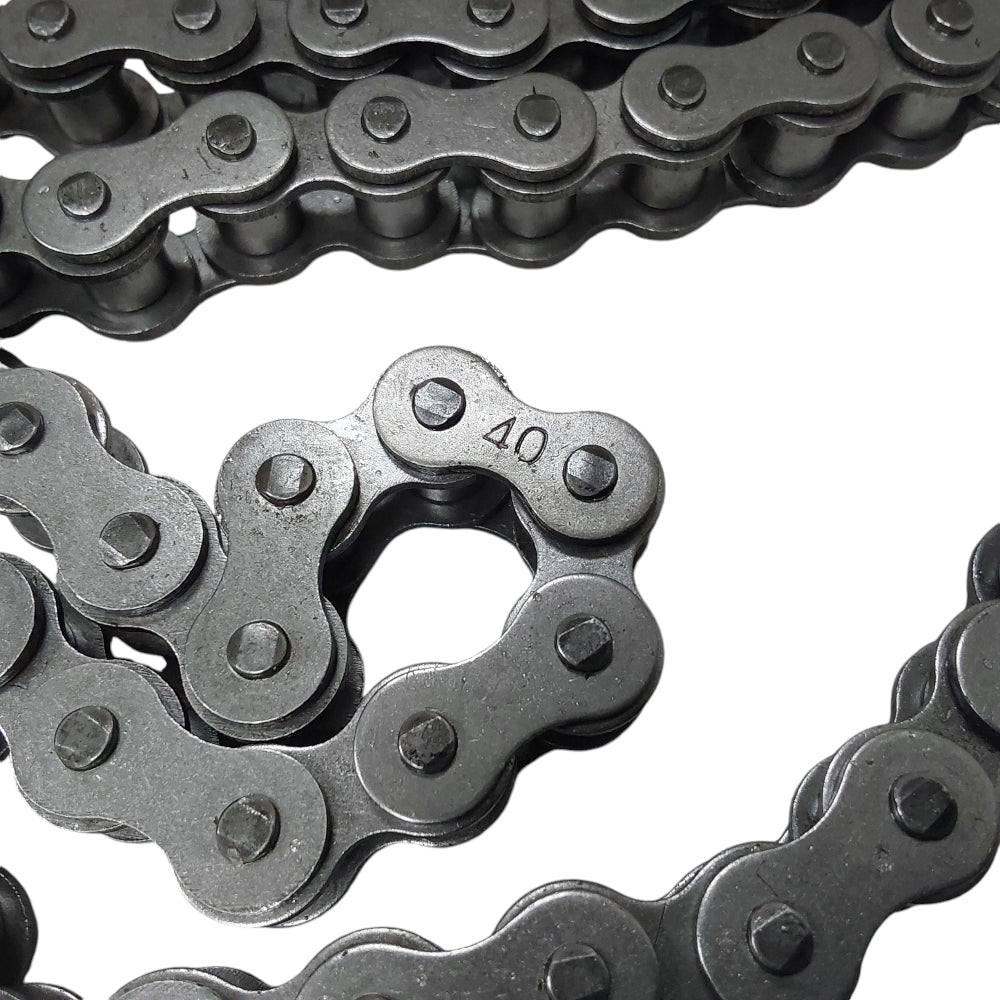

Ansi Chain No.:#40
Length: 10 Feet
Width : 5/16"

Pitch (P):0.5 inch (12.7 Mm)
Roller Diameter (D1 Max):0.313 inch (7.95 Mm)
Width Between Inner Plates (B1 Min):0.310 inch (7.85 Mm)
Pin Diameter (D2 Max):0.156 inch (3.96 Mm)
Pin Length (L Max):0.654 inch (16.60 Mm)
Pin Length (Lc Max):0.701 inch (17.80 Mm)

Replaces Aftermarket Chain: 250-019, 185, 283-0140, 32-105, 32-106, 385, 67069411, 7-06101-1, 9317, 9318, 9589-0008-02, 9589-0010-03

PP40_10
