Proven Part 46" Deck Rebuild Kit For MTD Fits 918-06977A, 942-04244A, 756-05034A, 954-05022A

Mower Deck Spindle Assembly with High lift Blade Pulley Nut & Belt

Fits MTD Models:
Compatible with Craftsman Lawn Tractor 46"
247.273910 (13A8A1ZT099) T2800 (2018)
247.273330 (13ATA1ZT099) T3100 (2018)
T 225 (CMXGRAM7821291) (13ALA1ZT091) (2019-2020)
T 240 (CMXGRAM1130044) (13APA1ZT093) (2019-2021)
CYT 4622 SE (13APA1KT897) - Columbia 46" Yard Tractor (2016)

Fits Cub Cadet Models:
XT1 Enduro Lawn Tractor 46"
XT1-LT 46 (13APA1CT056) (2016-2018)
(13A6A1CT056) (2019), (13A6A9CT009) (2021)
(13WPA1CT009) (2016)
(13WPA1CT210) (2016-2017)
(13APA1CT009) (2018)
(13APA1CT256) (2016-2017)
XT1-LT 46 KH (13APA1CT009), Koh. (2016)
(13APA1CT210), Koh. (2018-2019)
(13APA9CT210), Koh. (2020-2021)
(13APA1CT010), Koh. (2019)

(13APA9CT010), Koh. (2020-2021)
(13APA1CT056), Koh. (2019)
(13APA9CT056), Koh. (2020-2021)
(13APA1CT256), Koh. (2019)

Fits Troy-Bilt Models:
Super Bronco Lawn Tractor 46"
13AJA1BT066 (2019)
13APA9BT066 (2021)
13ATA9BT066 (46 B) (2021)
13AAA1BT066 (2018)
13APA9BT066 (2021)
13ATA9BT066 (46 B) (2021)
TB 2246 (13AAA1KT066) (2015-2017)

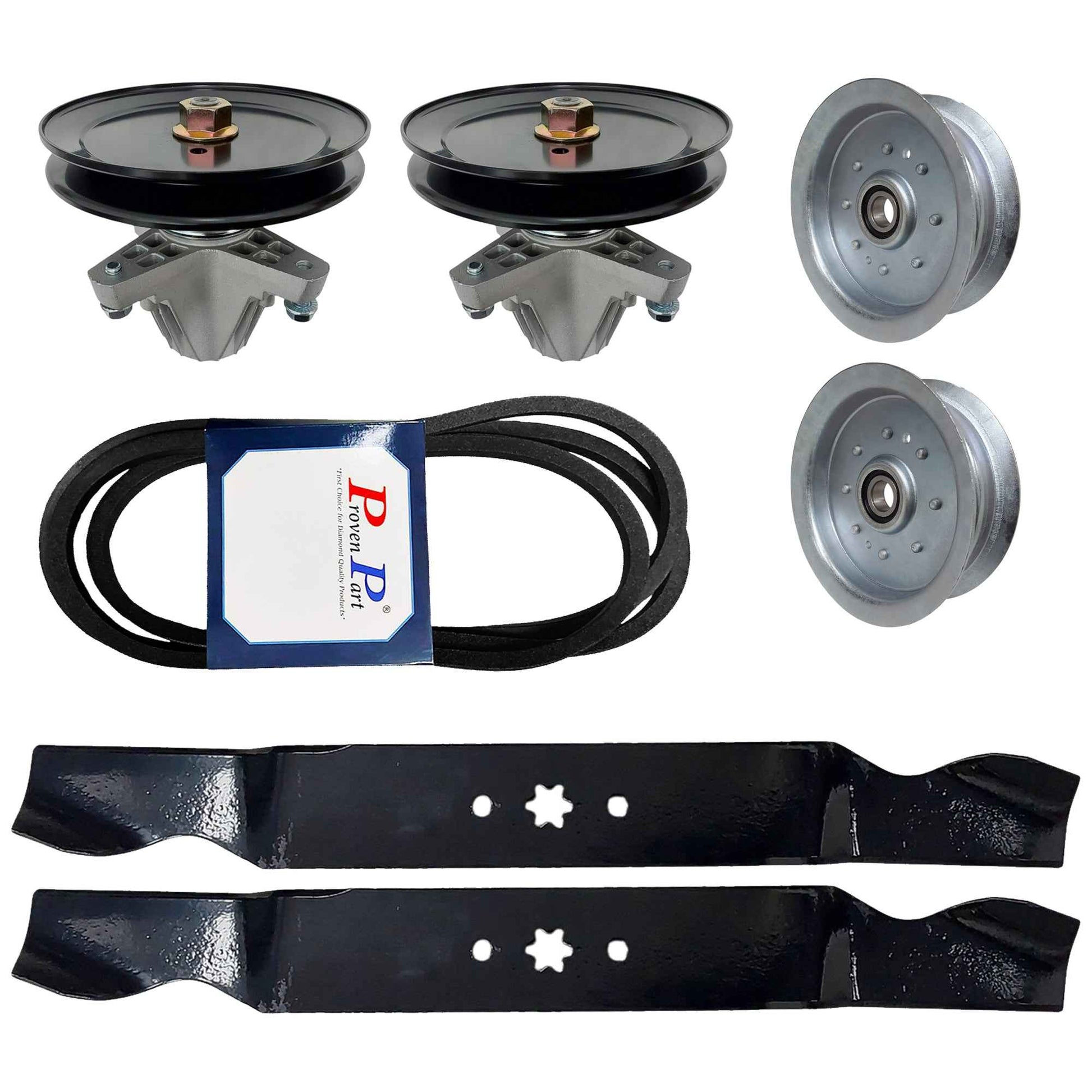

Order Includes:

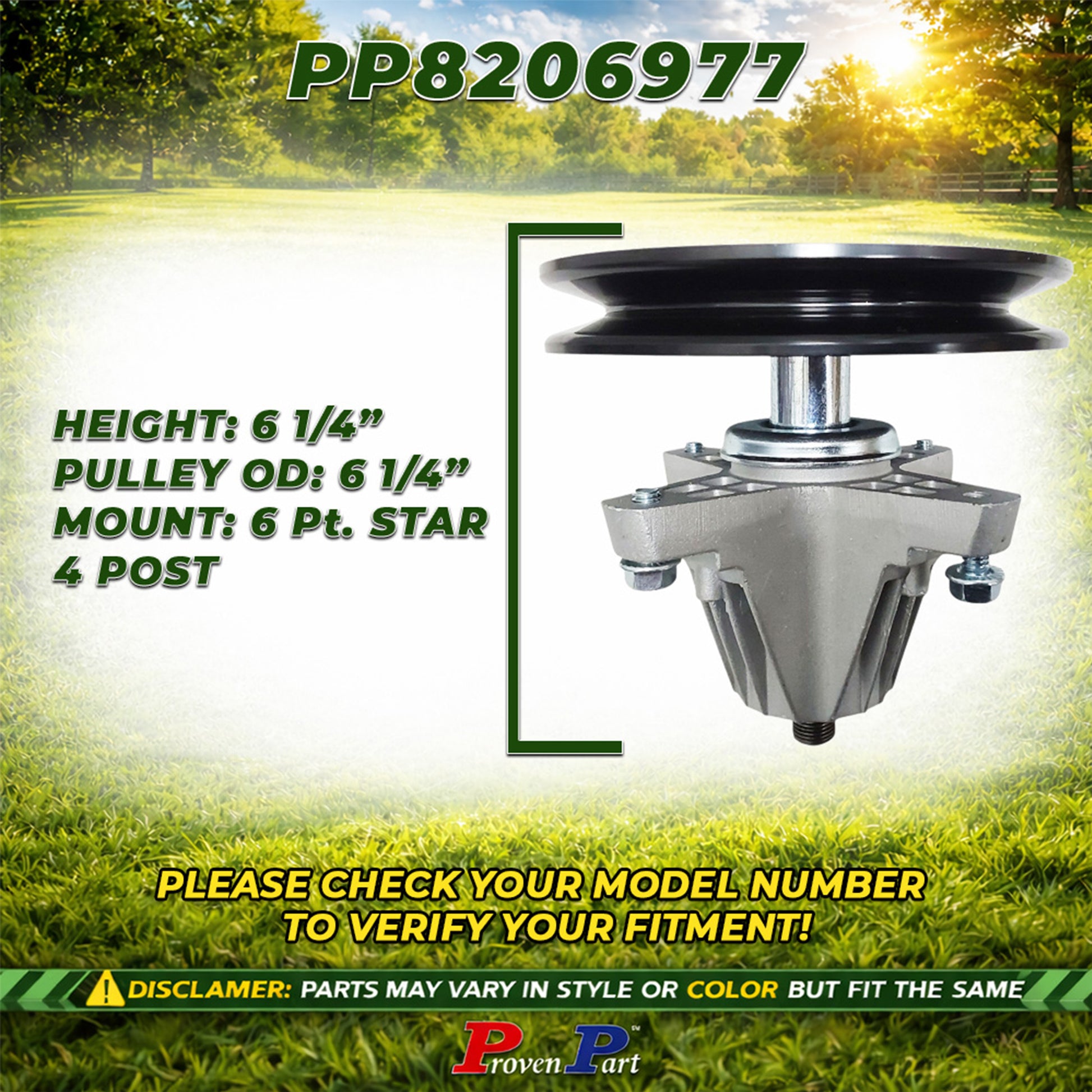

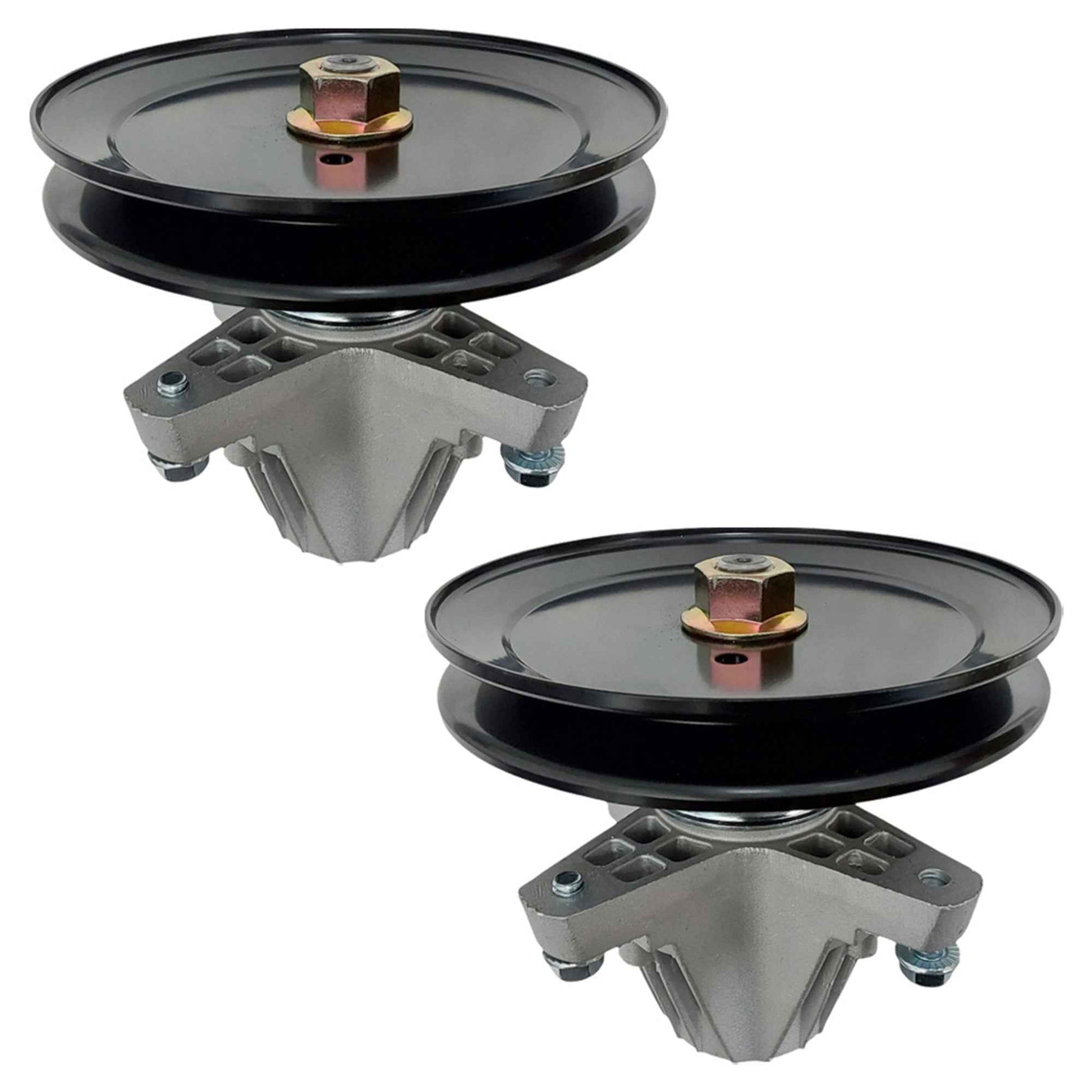

2 x Spindle Assembly:

Replaces: 490-130-C014, 618-06977
618-06977A, 918-06977, 918-06977A

Height: 169․8 mm - 6.68 in
Pulley Outer Diameter: 159 mm - 6.2 in
Mounting Hole Distance: 91 mm - 3.58 in
Material: Aluminum

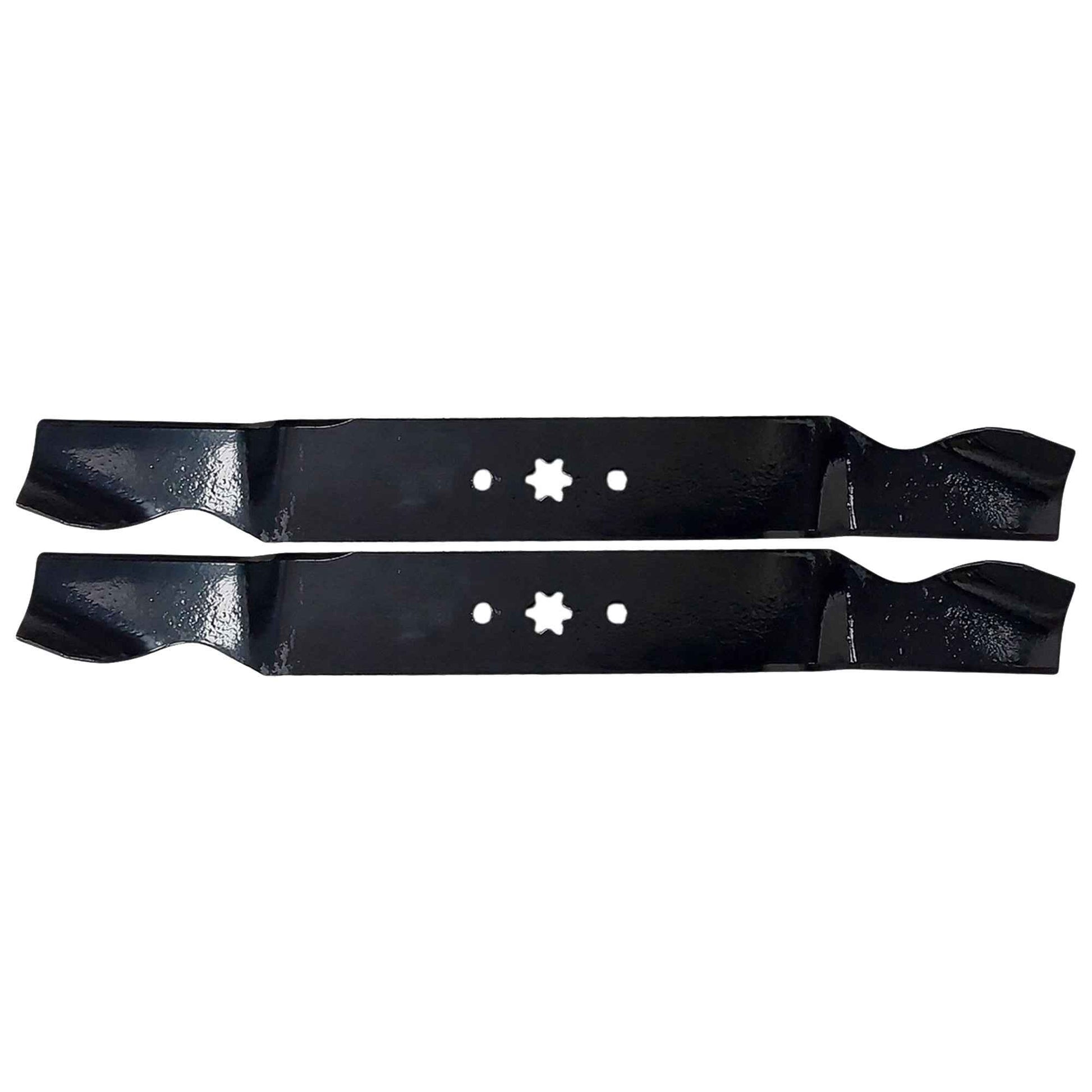

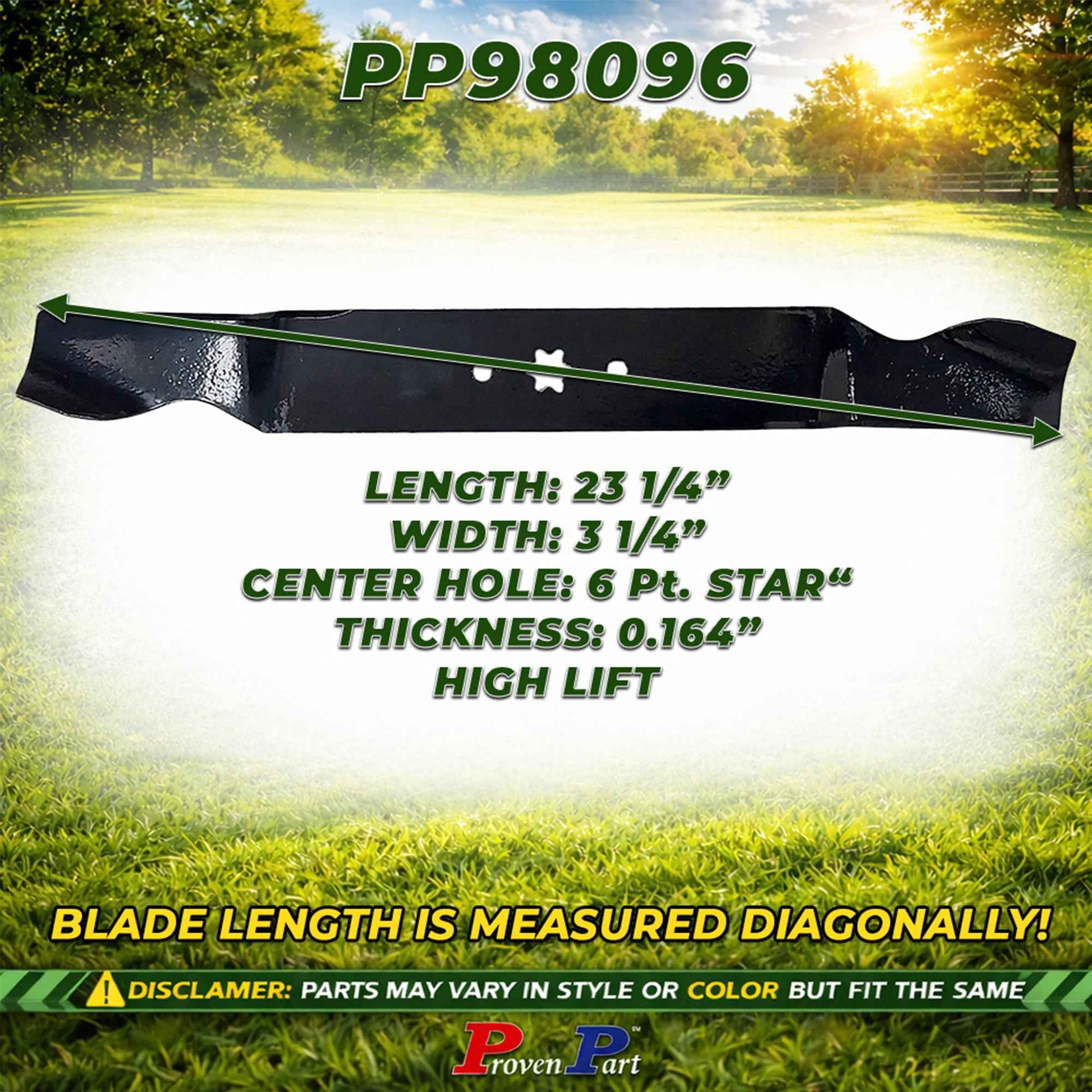

2 x Deck Blade:

Replaces: 490-110-C131, 742-04244, 742-04244A
742-04290, 742-04290A, 754-04244, 942-04244, 942-04244A
942-04290, 942-04290A, OCC-742-04244

Length: 590․5 mm - 23 1/4 in
Width: 76․2 mm - 3 in
Thickness: 4.16 mm - 0.164 in
Mounting Hole Distance: 76․2 mm - 3 in
Center Hole 6 Point Star
Hole Diameter: 28․5 mm - 1.12 in
Type: High lift Blade
Material: Steel

2 x Nut: 712-0417A, 712-0417, 712-0417AP
753-05549, 912-0417A, 112-0330
Width: 13․9 mm - 0․54 in
Inner Diameter: 14․5mm - 0․57 in
Outer Diameter: 36․6mm - 1․43 in

Material: Iron

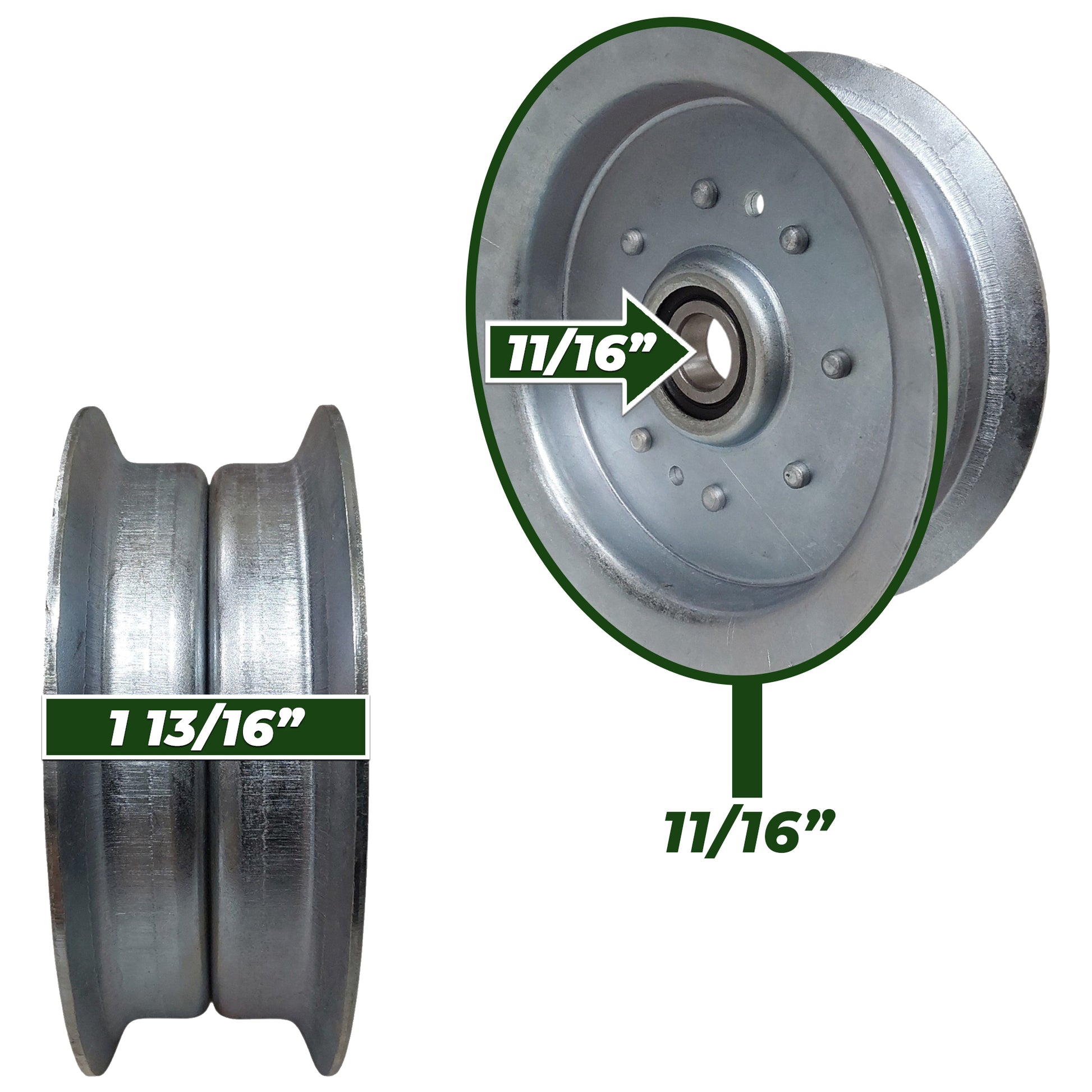

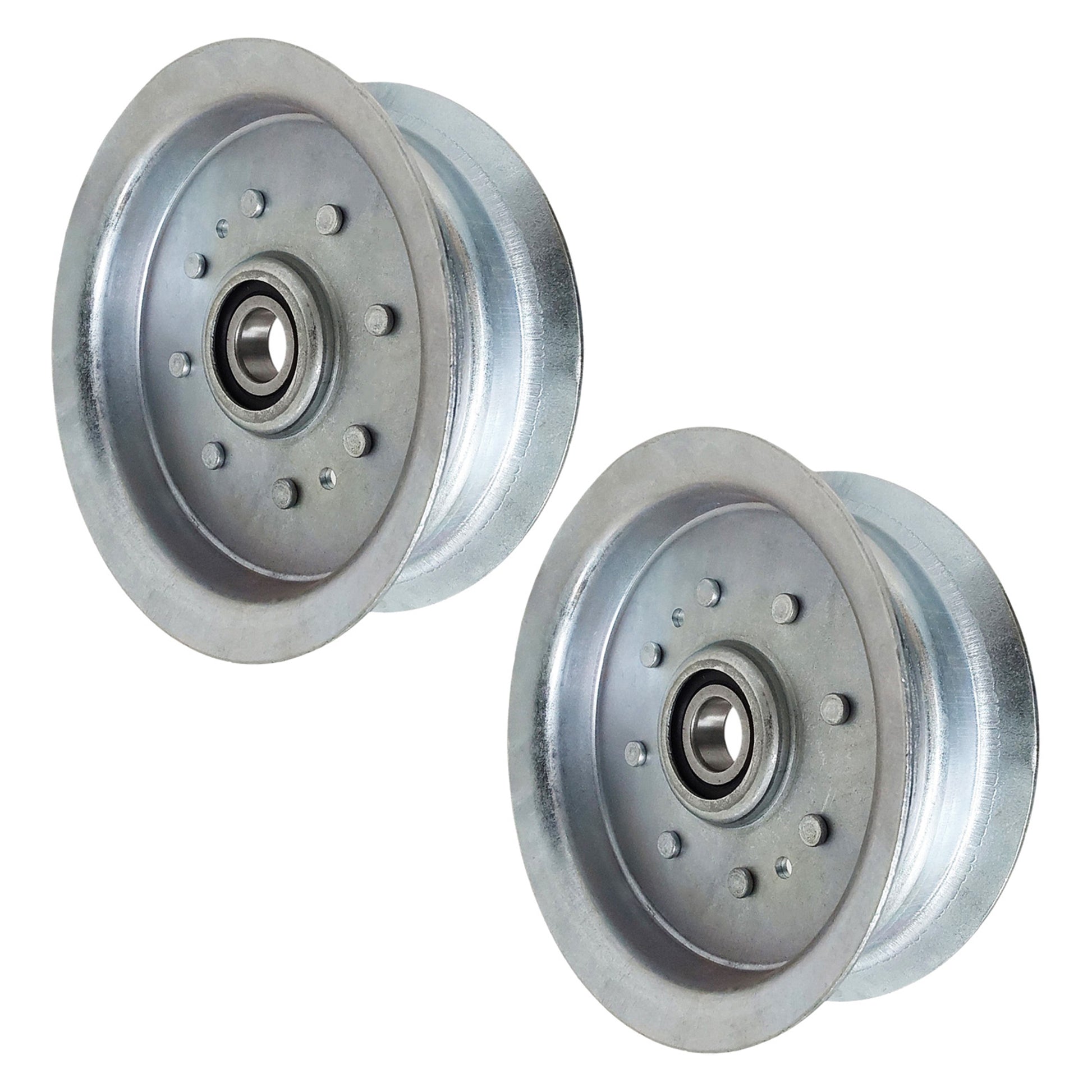

2 x Idler Pulley: 756-05034, 756-05034A
Width: 43mm  - 1.69 in
Inner Diameter: 17mm - 0.67"
Outer Diameter: 133mm - 5.23"
Material: Steel

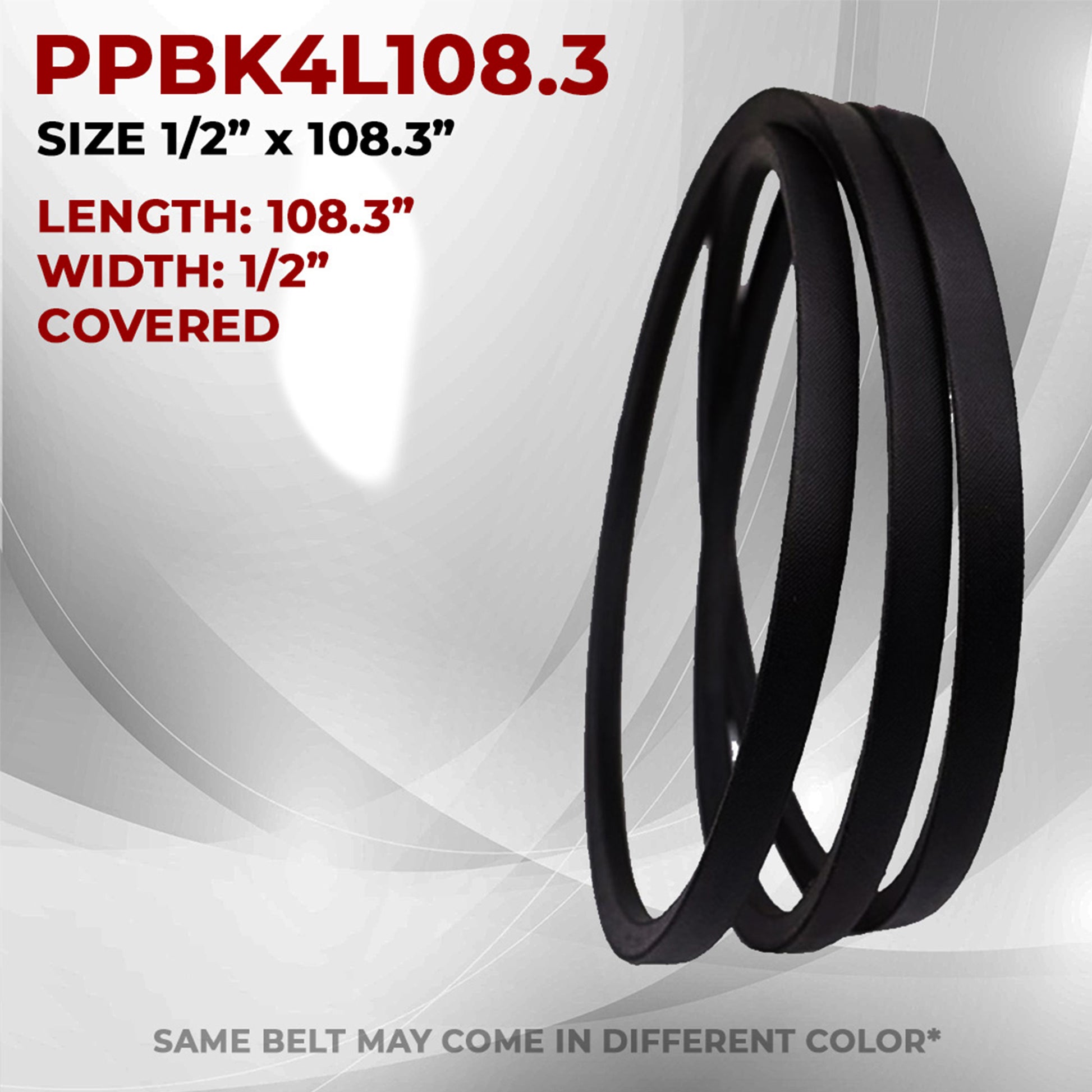

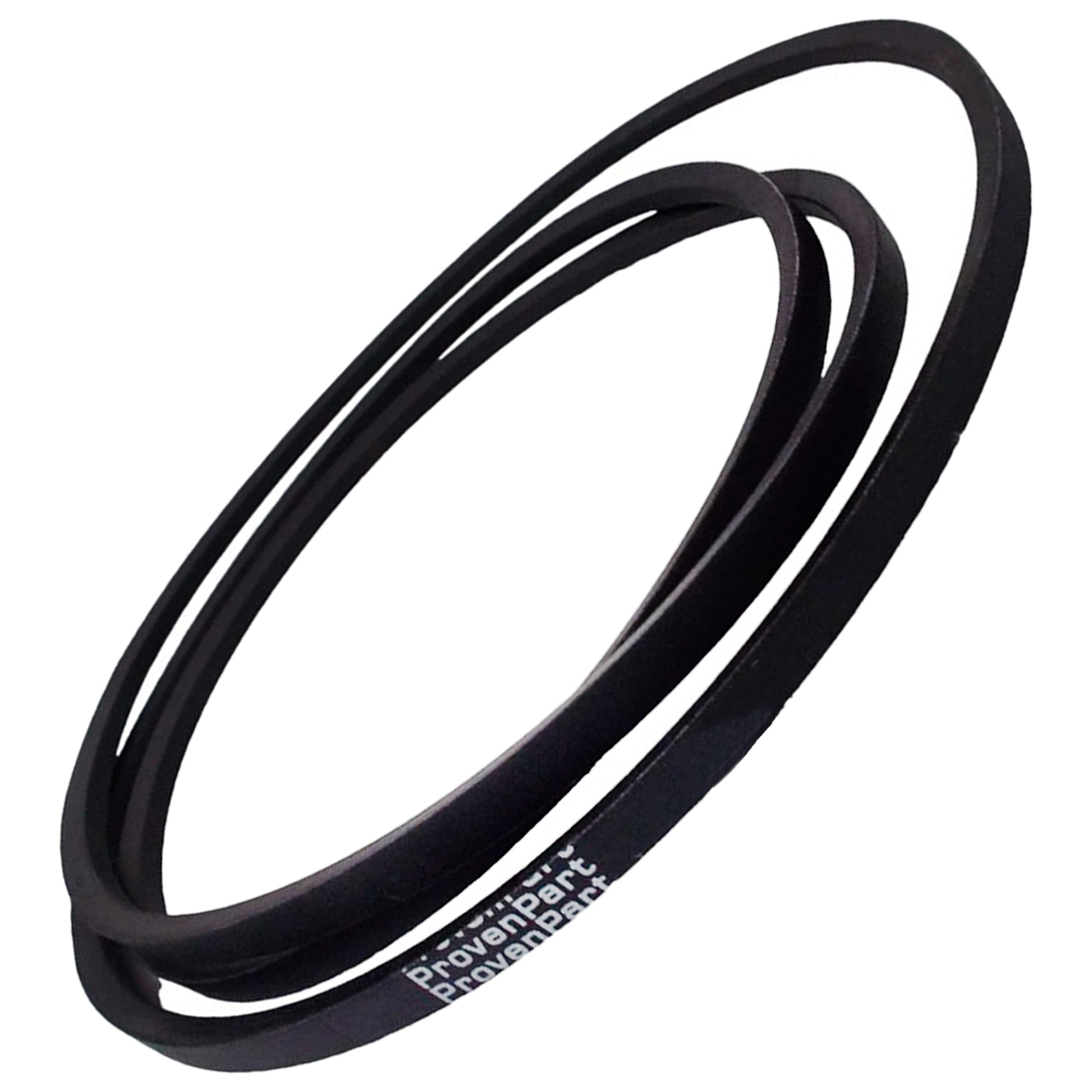

1 x Belt: 954-05022A, 754-05022A, 954-05022

Width: 13mm - 1/2 in
Overall Length: 2745mm - 108․3 in
Material: Polyester
